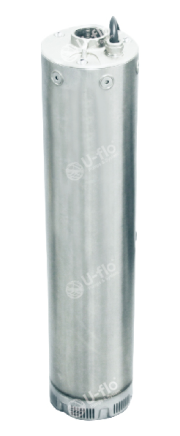

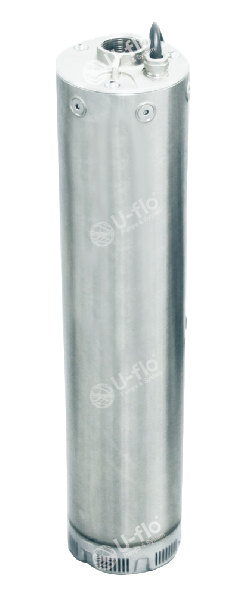

VN – All Stainless Steel Close-Coupled Multistage Submersible Pump
VN series stainless steel direct-connected multi-stage submersible pump, apply to 5” and above deep well, water pool, water tank and boost. VN series have a wide application range and adopt advanced laser cutting and welding process.
Technical Parameters:
Flow Q: up to 21m3/h
Head H: up to 160m
Power P: up to 5.5kW
Liquid temperature: -5℃ – 40℃
Performance and advantages:
1. Motor and water pump are easy to install in one piece
2, all stainless steel materials have a long service life
3, double mechanical seal separates the impeller and the motor
4, the motor is cooled by the water pump itself
Application range:
fountain
Cleaning system
Water supply boost
Rainwater transport
Agricultural irrigation spray system
