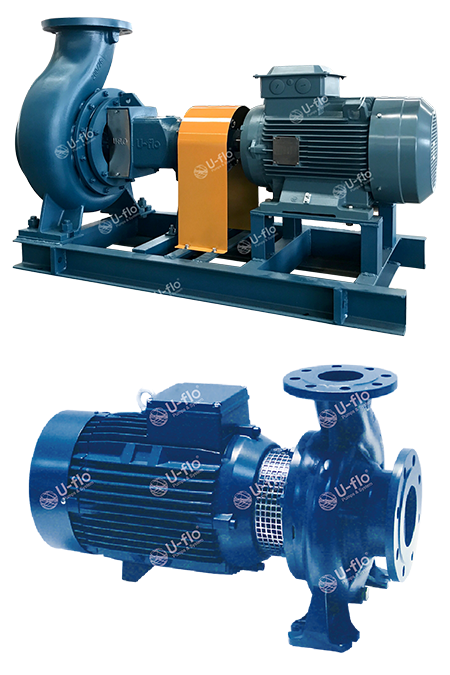

FH&FHC – Horizontal Single-Stage End Suction Pump
FH&FHC - Horizontal Single-Stage End Suction Centrifugal Pump (standard or close-coupled). This is a single-stage with end suction non self-priming centrifugal pump. In FHC type, the motor is directly coupled with pump shaft.
The rated power and dimension comply with EN733 Standard. The replaceable shaft sleeve is applied in shaft seal area. The replaceable wearing ring is applied between volute casing and impeller. Pump casing and base is constructed with a single casting.
Technical Parameters:
Flow Q: up to 1900m3/h
Head H: up to 260m
Power P: up to 160kW
Liquid temperature: -30℃ – 140℃
Performance and advantages:
1. the size meets EN and ISO standards
2. a wide range of materials can be selected
3. high load, stable operation
4. the structure is stable
Application range:
Liquid delivery / air conditioning system
District heating / pressurized water supply system
Environmental Engineering / Refrigeration Systems
Industry / Fire
Water treatment
