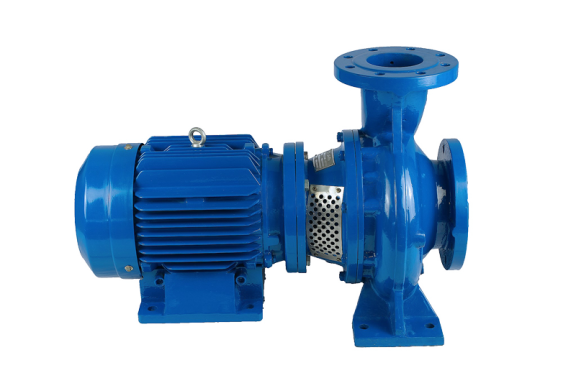

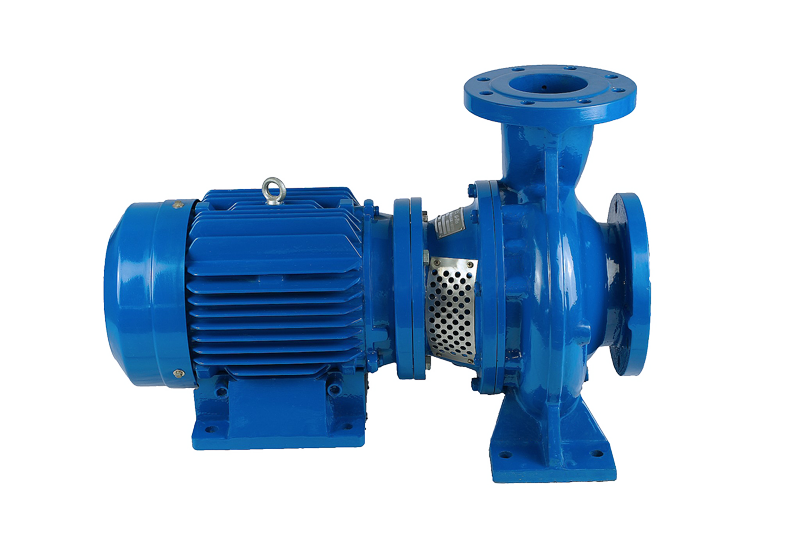

End Suction with Direct Coupled Centrifugal Pump – FHC Series
FHC series – End Suction with Direct Coupled Centrifugal Pump. This is a single stage, end suction centrifugal pumps. The motor is directly coupled with pump shaft. The rated power and dimension comply with EN733 Standard. The replaceable shaft sleeve is applied in shaft seal area. The replaceable wearing ring is applied between volute casing and impeller. Pump casing and base is constructed with a single casting.
Pump design |
|
| Model | Single stage direct coupled centrifugal pump |
| Installation | Horizontal |
| Suction | End suction |
| Maintenance | Easy maintenance with quick disconnect of motor and pump |
| Pump installation | Above-ground, Dry type |
| Suction feature | Non self-priming |
| Casing design | Volute type |
| Impeller Rotation | Closed – clockwise |
| Bearing | Ball bearing (SKF) |
| Seal | Burgmann mechanical seal |
| Connection | Direct coupling |
| Driven type | Motor, engine (ABB, Baldor and Siemen) |
Performance |
|
| Max. Flow Q | 750m3/h (3300GPM) |
| Min. Flow Q | 5m3/h (22GPM) |
| Max. Head H | 265m (869FT) |
| Min. Head H | 3m (10FT) |
| Max. Power N | 250kw (335HP) |
| Max. Speed n | 2950rpm |
| Max. Pressure P2 | 32bar (464PSI) |
| Max. Medium Temp. t | 140℃ |
Pump Material |
|
| Casing | Cast iron JL1040、Ductile cast iron JS1025、Stainless steel 1.4301/1.4401 (SS 304 and SS 316) |
| Impeller | Cast iron JL1040、Ductile cast iron JS1025、Tin bronze CC480K-GS 、Stainless steel 1.4301/1.4401 (SS 304 and 316) |
| Shaft | C45 carbon steel、Stainless steel 1.4057、Duplex stainless steel 1.4462 |
Motor |
|
| Frequency | 50HZ/60HZ |
| Voltage | 380VAC-420VAC/660VAC-660VAC、3KV、6KV |
| Protection grade | IP55 |
| Insulation class | F / B |
